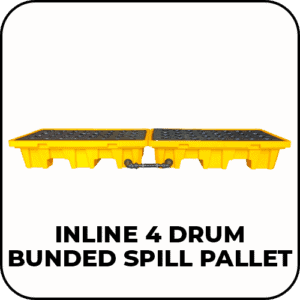

Spillsmart 4 Drum Inline Pallet
4 Drum Inline Pallet is sometimes referred to as a Bund Accumulation Centre. Each Bunded Spill Pallet is 1320mm x 680mm with a low profile of just 300mm. The two Pallet Bunds are secured into place with 8mm bolts end to end, with a Bridging Hose connecting into both Bund Sumps via two 32mm Nyglass Elbows. With the Bund Sumps now joined together the total capacity is now increased to 240L.
This Bunded Spill Pallet system ensures the Bridging Hose is fitted without protruding past the external width of the bund. This eliminates the risk of the hose becoming a trip hazard and allowing the Spill Pallet Bunds to be safely placed against a wall on either side. The removable grates provide easy access to assess any spilt liquid in the sump for cleaning and removal with each Spill Pallet fitted with a Sump Plug outlet. Built with a premium robust construction, each Bunded Spill Pallet can handle a static load of 1300kg.
The 4 Drum Inline Bunded Pallet Set is manufactured from high-quality HDPE and capable of storing oils, fuels, hydrocarbons and a large variety of chemicals. Use to store up to four 200L drums, containers, barrels and for use when collecting or dispensing liquids to ensure accidental leaks and spills are contained. These Bunded Spill Pallets provide an economical secondary containment solution complimenting environmental and OH&S site requirements.
Designed for:
- Inline storage of up to four 200L drums, containers or barrels
- Combining sump capacities of two 120L Bunded Spill Pallets creating a practical and compliant low profile Inline 4 Drum Bunded Spill Pallet Set to 240L.
- Containing spilt liquids from reaching floors, drains and inventory.
- Containing spills and drips whilst collecting and decanting liquids
- Preventing slips from spilt liquids
Features:
- Two Bunded Spill Pallets 1320mm x 680mm with a low profile of just 300mm.
- 240L combined capacity
- Bunded Spill Pallets are bolted together end to end with two 8mm bolts.
- Sumps combined via two 32mm Nyglass Elbows and a Bridging Hose
- Bridging Hose fits neatly inside of the external width of the Bunded Pallet to prevent a tripping hazard.
- Removable Grates for accessing the sump with a sump drain outlet fitted in each Bund Pallet
- Heavy Duty construction – static 1300kg load on each Bunded Pallet
High visibility Yellow
